HOME > 제품소개 > 10Ton Grade Trailer Axle

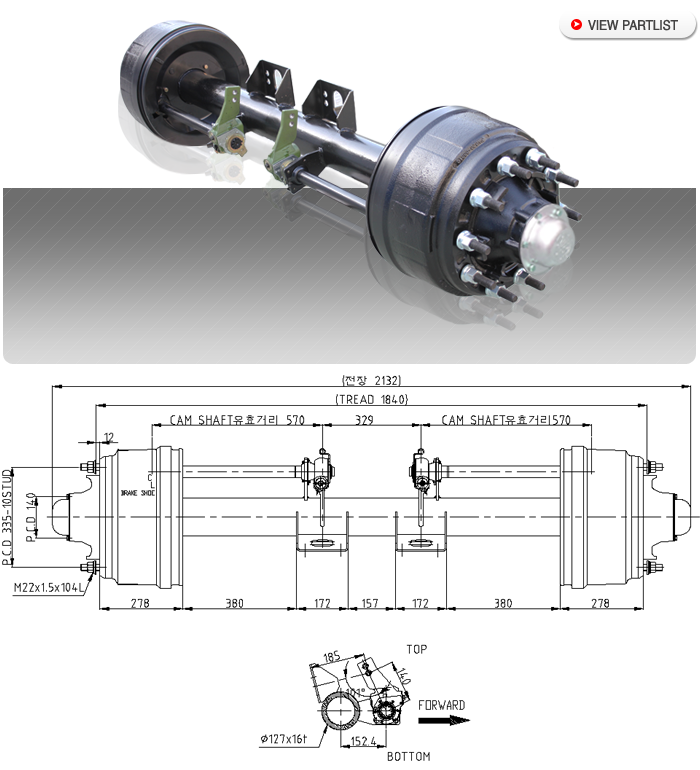

MODEL PART NO. 적용축하중(AXLE LOAD) S/SEAT SPAN BRAKE SIZE INNER B.R.G OUTER R.R.G PITCH CIRCLE STUD HOLES WHEEL BORE DIA AXLE SHAFT WEIGHT
SW5"-335A SW020-A0000 22,500Ibs (10.2TON) 965 419x180 (16.5"x7") HM218248
/210		 HM212049
/011		 335mm 10HOLE 280.8mm

Φ127x16T

 337KG
SW5"-335S SW021-A0000 22,500Ibs (10.2TON) 965 419x180 (16.5"x7") HM218248
/210		 HM212049
/011		 335mm 10HOLE 280.8mm

Φ127x16T

 337KG
