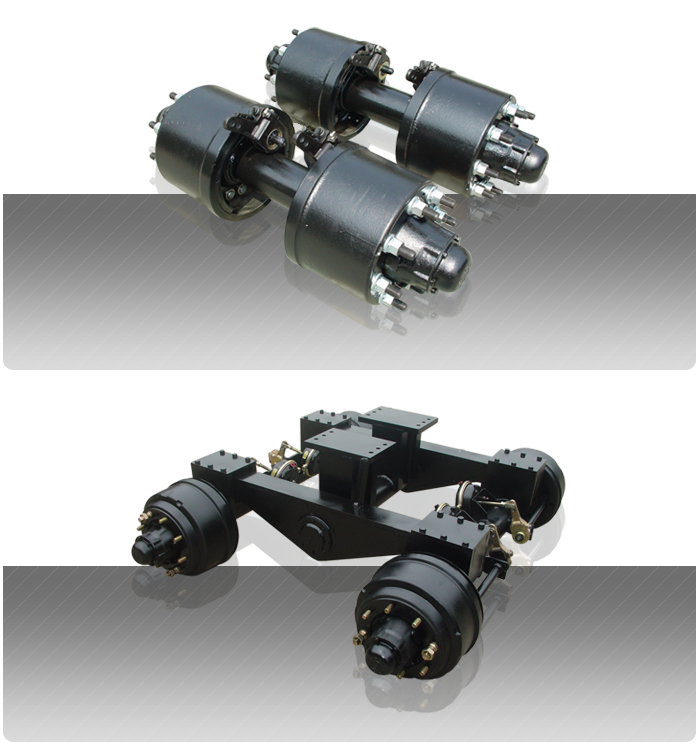

HOME > 제품소개 > Walking Beam Axle



MODEL PART NO. 적용축하중(AXLE LOAD) S/SEAT SPAN BRAKE SIZE INNER B.R.G OUTER R.R.G PITCH CIRCLE STUD HOLES WHEEL BORE DIA AXLE SHAFT WEIGHT
Walking Beam - 10TON~20TON - 419x180
(16.5"x7")
HM218248
/210
HM212049
/011
285mm 8HOLE 220.8mm

Φ127 SOLID

-
Walking Beam - 10TON~20TON - 419x180
(16.5"x7")
HM218248
/210
HM212049
/011
335mm 10HOLE 280.8mm

Φ127 SOLID

-
