HOME > 제품소개 > Disc Brake Axle

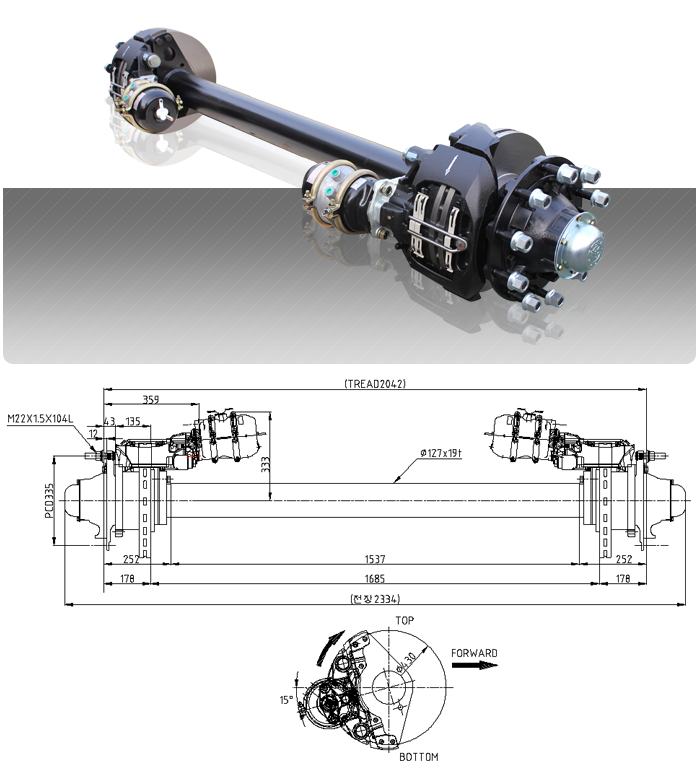

MODEL PART NO. 적용축하중(AXLE LOAD) S/SEAT SPAN BRAKE SIZE INNER B.R.G OUTER R.R.G PITCH CIRCLE STUD HOLES WHEEL BORE DIA AXLE SHAFT WEIGHT
DISC 22.5" SW800-A0000 22,500Ibs (10.2TON) 1230

DISC 22.5"

HM218248
/210
HM212049
/011
335mm 10HOLE 280.8mm

Φ127x19T

346KG
