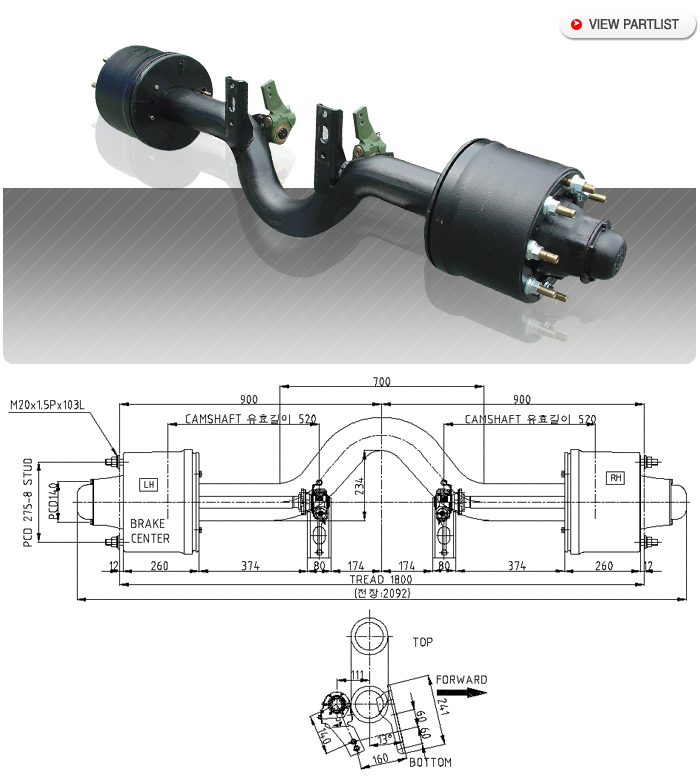

HOME > Products > 5Ton Grade Pusher Axle



MODEL PART NO. AXLE LOAD S/SEAT SPAN BRAKE SIZE INNER B.R.G OUTER R.R.G PITCH CIRCLE STUD HOLES WHEEL BORE DIA AXLE SHAFT WEIGHT
SWL-275 PUSHER AXLE SW252-A0000 22,500Ibs (10.2TON) USER

Φ310x190

 HM218248
/210		 HM212049
/011		 275mm 8HOLE 228.5mm Φ127x16T 276KG
